Automatic Print and Apply Euro Jumbo

Automatic print and apply machine applies the last printed label on pallets

Euro Jumbo is an automatic print and apply system applying the last printed label directly on pallets.

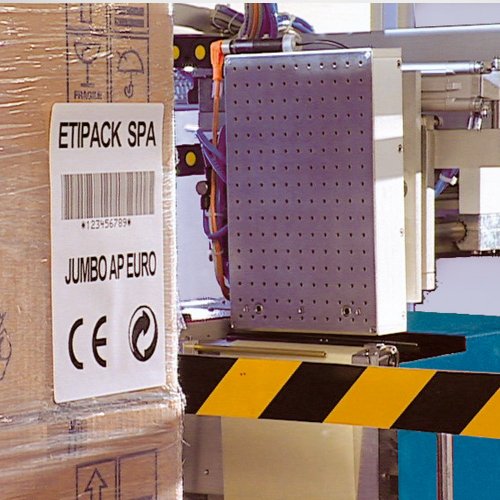

Euro Jumbo is especially designed for pallets in that it applies 2 ISO A5 labels on two sides (front and side) of the corner of pallets.

Euro Jumbo prints any type of code, images and variable data coming from the packaging line and applied the last printed label.

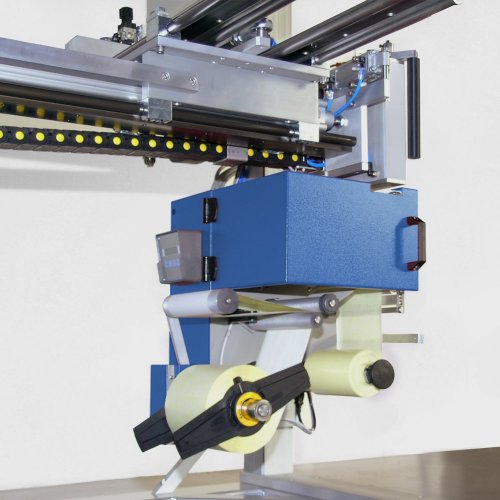

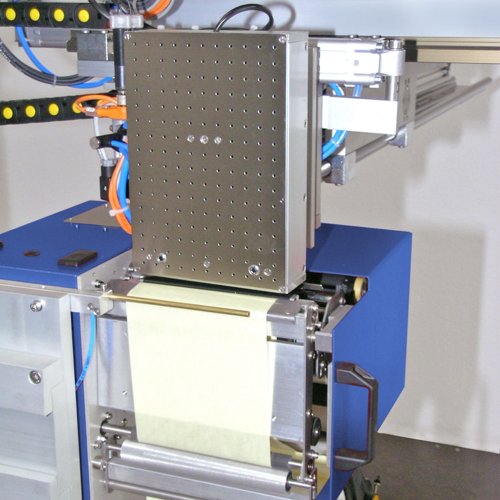

The core of the Euro Jumbo print and apply system is an industrial thermal transfer printer Jumbo Plus with dual processor electronics and equipped with an air jet application pad applying the labels on the front and side of pallets at a standstill.

This print and apply machines works with reels of thermal transfer ribbon 600 m long, in order to ensure high autonomy in working cycles.

Resolution ≤ 8 dots/mm
Printing speed 200 mm/s
Label width 150 mm



Features of the print and apply

• Drawing unit 170 mm
• Label reel 280 mm
• Printhead with historical control 8 dot/mm
• Interfaces RS232, LAN Ethernet
• Display keyboard for machine configuration
• Inner rewinder for liner paper
• Inner clock for date/time
• Ethernet cable
• Windows driver
• Balancing pad with 3 movements
• Control of label presence on pad
• Electric panel board
• Air unit treatment
• Base and support structure

Ancillary devices

• Start/stop label
• Start photocell
• PC
• Programs for label layout
• Cables
• Interfaces
• Control applied label
• Safety guards

Features
Print speed≤ 200 mm/s
Dispensing speed≤ 1 pcs/min
Label size
(width x step)
From 100x120 mm
to 150x210 mm
Print area≤ 150x210 mm
Type of printingThermal transfer
or direct thermal
Outside reel Ø≤ 280 mm
Inside reel Ø40÷75 mm
Size L - W - H1459x1303x2080 mm
Power supply115/230 V,
50/60 Hz
Electrical input600 W
BarcodesAll types
Text rotation4 directions
Video
EuroJumbo.pdf
