Automatic contactless print and apply machine applies the last printed label on moving products
Stick is a small automatic print and apply system applying the last printed label on moving boxes and products.
Stick prints any type of code, images and variable data coming from the packaging line and applied the last printed label.

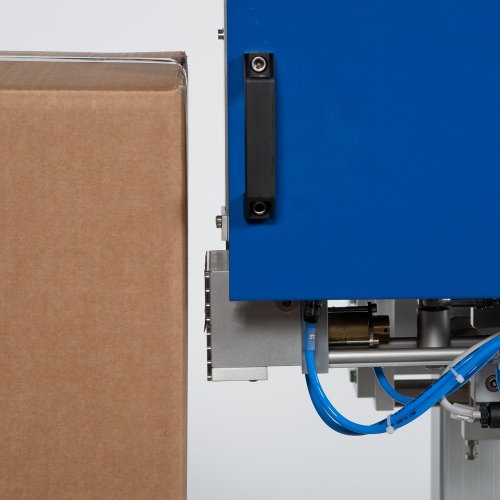

The core of the Stick print and apply system is an industrial thermal tansfer printer model Spider Plus 4” with dual processor electronics and equipped with a pneumatic applicator blowing the label on the box, or any other moving product, and applies it contactless.
This print and apply machine can fit rolls of thermal transfer ribbon (TTR) up to 600 m length in order to ensure the highest non-stop.
Resolution ≤ 8, 12 dots/mm
Printing speed 250 mm/s
Label width: 104 mm
Features of the print and apply
- Drawing unit 120 mm
- Label reel 280 mm
- Printhead with historical control 8 dot/mm
- Interfaces RS232, LAN Ethernet
- Display keyboard for machine configuration
- Inner rewinder for liner paper
- Inner clock for date/time
- Ethernet cable
- Windows driver
- One axle applicator 30 mm stroke

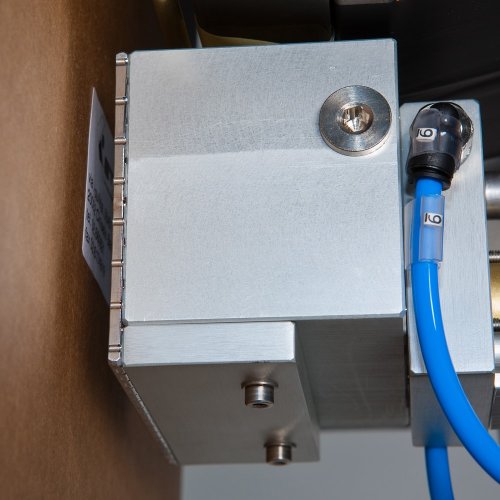

- Pad 120×150 mm with Vortec air blow (size customizable upon request)
- Quadro elettrico di gestione
- Air unit treatment
- Photocell for label on pad control
Ancillary devices
- Start/stop label
- Start photocell
- PC
- Programs for label layout
- Cables
- Interfaces
- Control applied label
- Base and support structure
- U-shaped support structure
- Safety guard
| Features | STICK EVO 4" | STICK EVO 6" |
|---|---|---|
| Print speed | max 300 mm/s | max 300 mm/s |
| Dispensing speed | ≤ 50 pcs/min with labels step of 50 mm, 25 pcs/min with label step of 150 mm and LAN connection | ≤ 50 pcs/min with labels step of 50 mm, 25 pcs/min with label step of 150 mm and LAN connection |
| Label size (width x step) | From 50x50 mm to 120x150 mm | From 50x50 mm to 170x210 mm |
| Print area | ≤ 104x150mm | ≤ 150 x 210mm |
| Type of printing | Thermal transfer or direct thermal | Thermal transfer or direct thermal |
| Outside reel Ø | ≤ 280 mm | ≤ 280 mm |
| Inside reel Ø | 40÷75 mm | 40÷75 mm |
| Power Supply | 115/230 V, 50-60Hz | 115/230 V, 50-60Hz |
| Compressed air | 6 bar | 6 bar |
| Barcodes | All types | All types |
| Text rotation | 4 directions | 4 directions |
